high frequency vertical and horizontal electrodynamics vibration shaker test machine

Brand Name : ASLI

Model Number : ES-6A

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 30 set per month

Delivery Time : 30-35 work days after deposit

Packaging Details : export standard plywood case

sine force : 6000N

speed : 1.8 m/s

displacement : 51mm

frequency : 3~3500HZ

loading : 250kg

Acceleration : 100g

Vibration Direction : vertical and horizontal

Table Size : 600x600mm

Contact Now

Download document for storage -- click here ----→ES-6 vibration test equipment.pdf

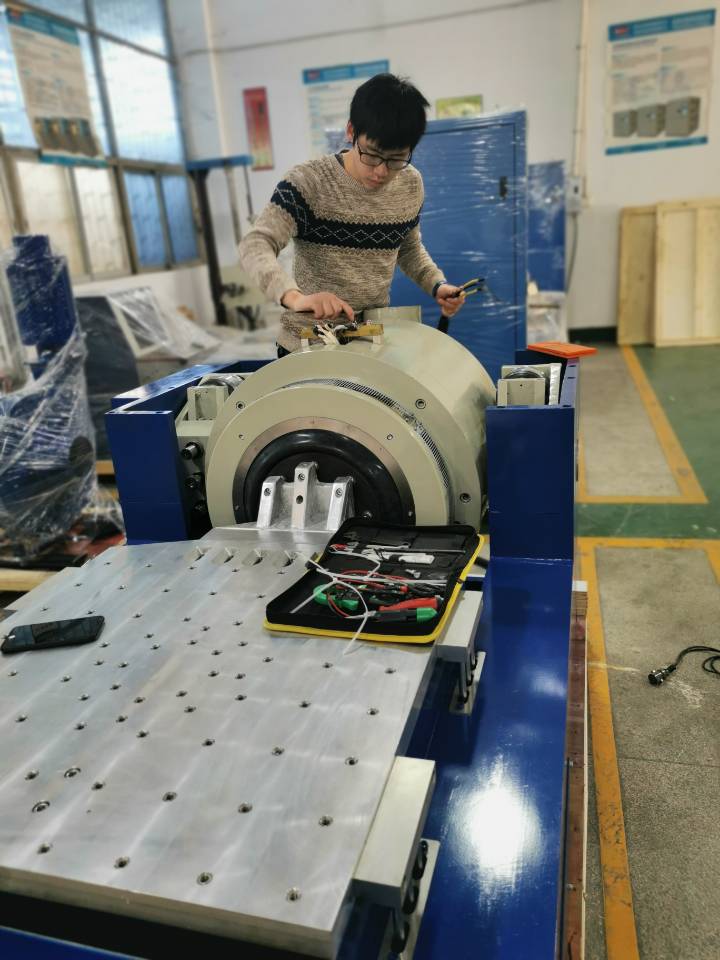

high frequency vertical and horizontal electrodynamics vibration shaker test machine

Test system composition

1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.

high frequency vertical and horizontal electrodynamics vibration shaker test machine

Specification

Name high frequency vertical and horizontal electrodynamics vibration shaker test machine
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s2) Rated Speed(m/s) Rated displacement (p-p)mm Max. Loading (Kg) moving coil (Kg) Dimension of Moving coil (mm)
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450

high frequency vertical and horizontal electrodynamics vibration shaker test machine
high frequency vertical and horizontal electrodynamics vibration shaker test machine
high frequency vertical and horizontal electrodynamics vibration shaker test machine

high frequency vertical and horizontal electrodynamics vibration shaker test machine

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

high frequency vertical and horizontal electrodynamics vibration shaker test machine
